Right-left Distinction Three Dimensional Adjustable Hidden Hinge Cross Wooden Door Hinge 1 pcs

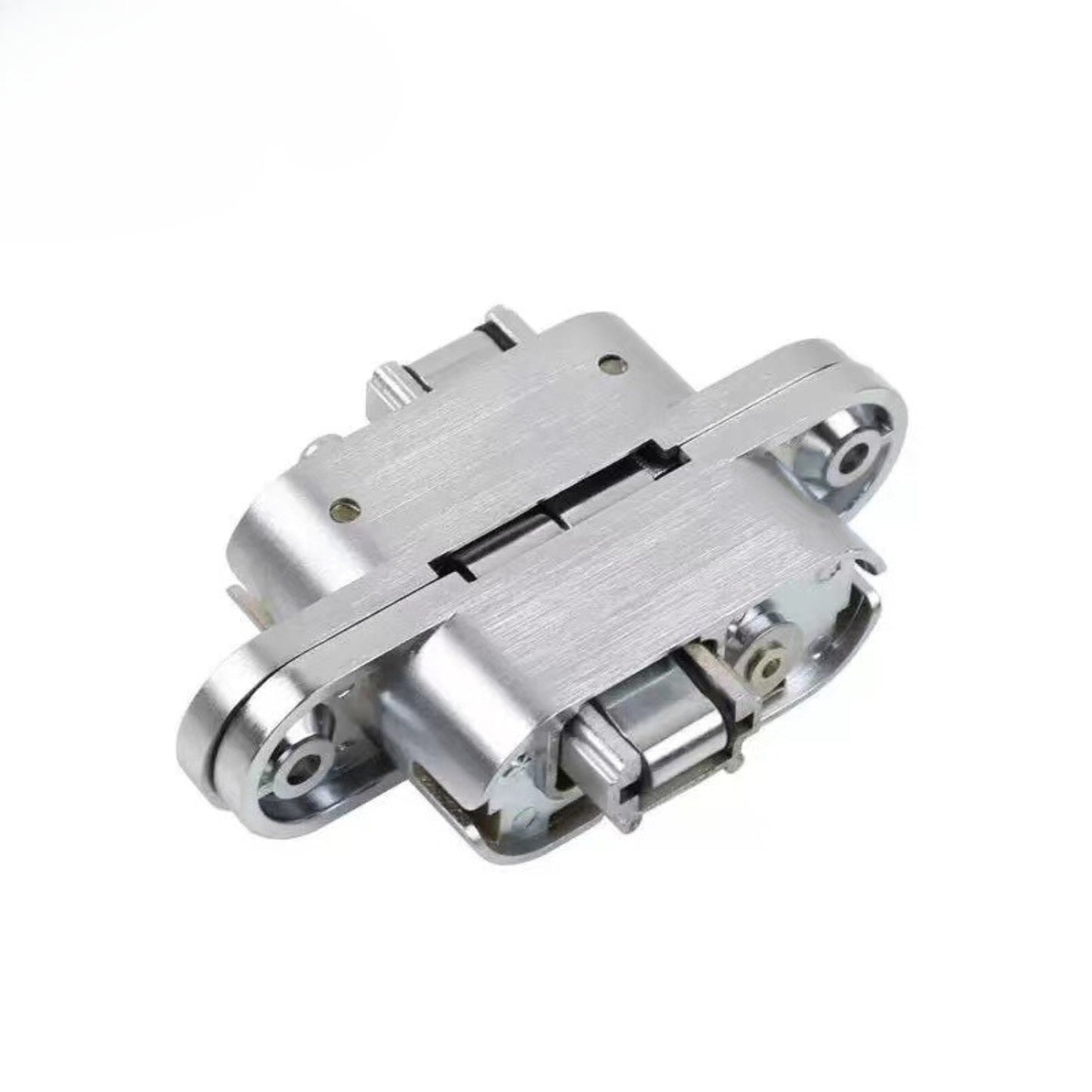

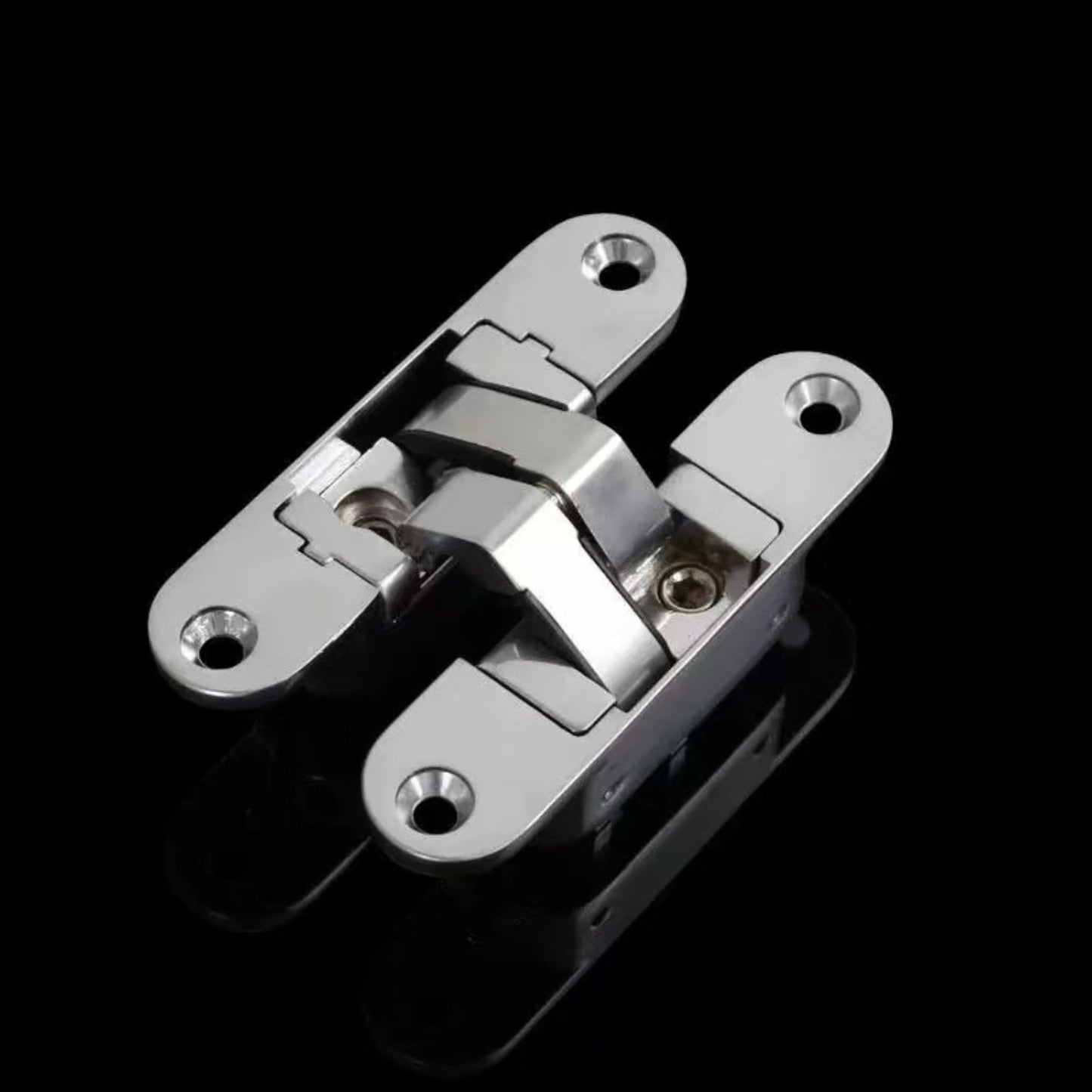

Three-Dimensional Adjustable Hidden Hinge - Designed for Wooden Doors

This Three-Dimensional Adjustable Hidden Hinge is designed for wooden doors, offering exceptional functionality and aesthetics. Its ingenious design allows for complete concealment during installation, enhancing the overall appearance of the door and eliminating the unsightly visibility of traditional hinges. Made from high-strength zinc alloy, the hinge ensures durability and stability over time.
Name: Three-dimensional adjustable concealed hinge
Material: Zinc alloy
Maximum width:1000mm
Minimum width:35-40mm
Maximum load:40-60KG
Opening angle:180
Characteristics: Adjustable without disassembling. Scope of application: Suitable for all kinds of flush and hidden doors.

Key Features:

• Three-Dimensional Adjustment: The hinge supports precise adjustments of ±3mm vertically, ±3mm horizontally, and ±1mm laterally, allowing for perfect alignment without the need to modify the door itself.
• Opening Angle: The door can open up to 180°, accommodating the need for a wide entryway.
• Wear-Resistant Nylon Design: Featuring wear-resistant nylon, this hinge eliminates the need for regular lubrication, reducing maintenance costs.
• Load Capacity: Each set of three hinges can support a maximum load of 80kg, making it suitable for heavier wooden doors while ensuring stability.

This hidden hinge not only enhances the aesthetics of the door but also provides outstanding functionality and durability, making it an ideal choice for high-end door solutions.
