319-D Downward Damping support bar

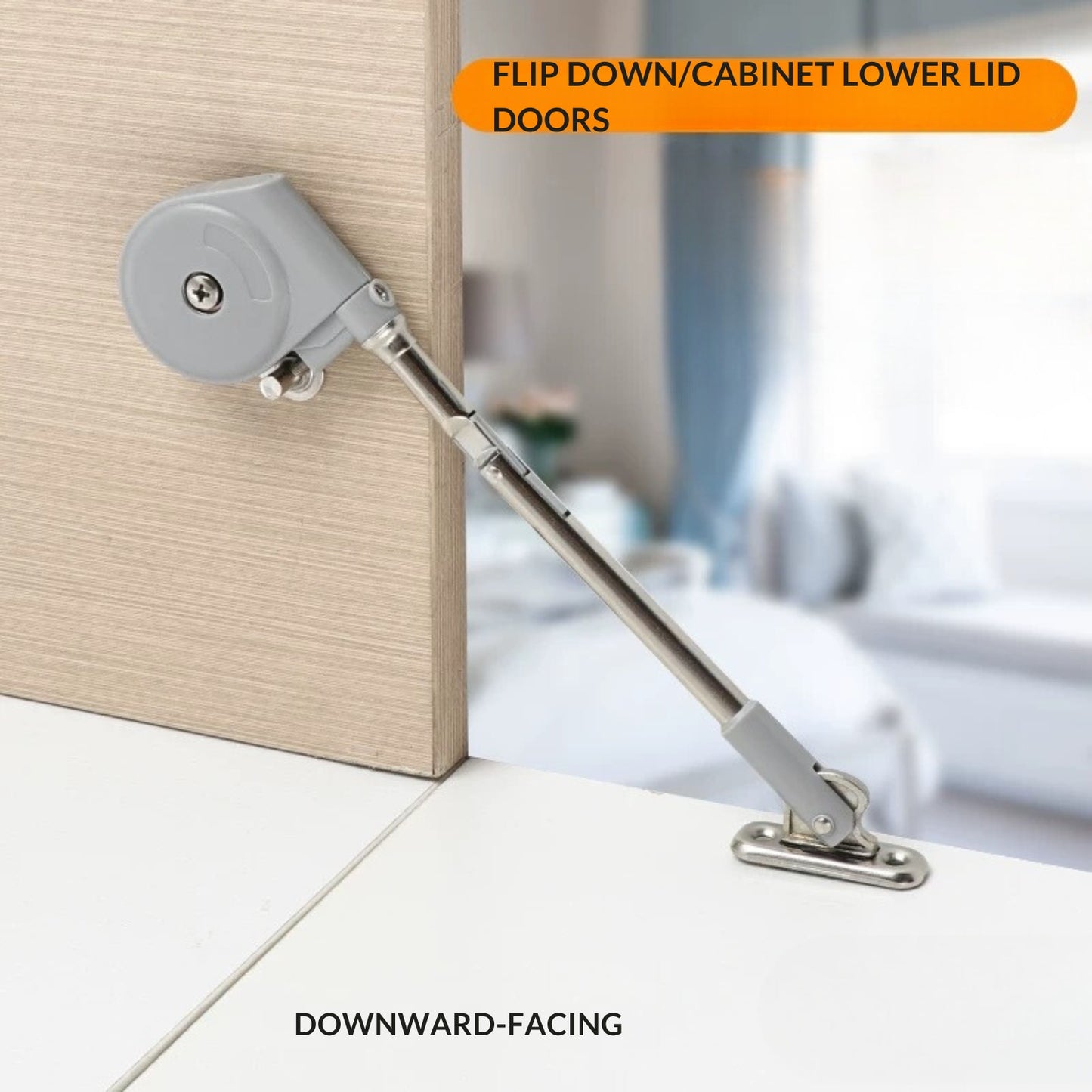

Flip Down/Cabinet Lower Lid Doors

Designed for precision and versatility, the Damped Support Bar provides a reliable solution for a variety of lifting and support applications. This strut bar is designed with a short stroke to provide efficient and controlled movement. Integrated damping technology ensures smooth and quiet operation, enhancing the user experience. Available in both short and long lengths to meet a variety of needs and preferences. Whether you need gentle support or strong assistance, the damped support bar delivers performance every time you use it.
Standard Models
Material: Q235, POM, ABS, oil-resistant Cabinet height: 300-400mm Capacity: 2.5-3.5kg Cycle: 30,000 cycles (Nss Class 8/48 hours test)

Short Model
Material: Q235, POM, ABS, oil-resistant Cabinet height: 150-300mm Capacity: 1.5-2.5kg Cycle: 30,000 cycles (Nss class 8/48 hours test)
